Planetary gearboxes EX

The units of the EX series are compact, and yet extremely powerful.
Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception.
The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface.
Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on, always.

Main features

Strength and solidity

Flexibility in applications

High reduction ratios

Excellent weight/power ratio

High output torque

Full customization available

Specifications

  • Ratio

    Min 1/3.48 - Max 1/7000

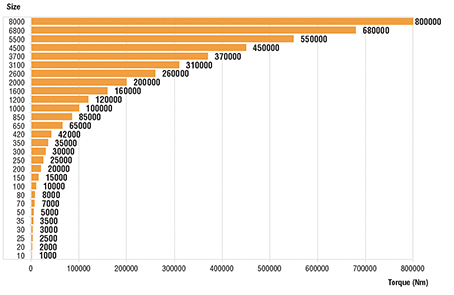

  • Torque (Nm)

    Min 1000 - Max 700000

  • Power (Kw)

    Min 0,47 - Max 1900

  VIDEO TUTORIAL

Documentation

Introduction (EN)

DOWNLOAD

Technical Datasheet - Performances (EN)

DOWNLOAD

Dimensions - Weight (EN)

DOWNLOAD

Dimensions - Weight_Size 10-20-25 (EN)

DOWNLOAD

Dimensions - Weight_Size 30-35-40-50-70 (EN)

DOWNLOAD

Dimensions - Weight_Size 80 (EN)

DOWNLOAD

Dimensions - Weight_Size 90-95-100 (EN)

DOWNLOAD

Dimensions - Weight_Size 150-180-200 (EN)

DOWNLOAD

Dimensions - Weight_Size 250-280 (EN)

DOWNLOAD

Dimensions - Weight_Size 300 (EN)

DOWNLOAD

Dimensions - Weight_Size 350 (EN)

DOWNLOAD

Dimensions - Weight_Size 360-420 (EN)

DOWNLOAD

Dimensions - Weight_Size 600 (EN)

DOWNLOAD

Dimensions - Weight_Size 650 (EN)

DOWNLOAD

Dimensions - Weight_Size 800-850 (EN)

DOWNLOAD

Dimensions - Weight_Size 1000 (EN)

DOWNLOAD

Dimensions - Weight_Size 1200 (EN)

DOWNLOAD

Dimensions - Weight_Size 1500 (EN)

DOWNLOAD

Dimensions - Weight_Size 1600 (EN)

DOWNLOAD

Dimensions - Weight_Size 2000 (EN)

DOWNLOAD

Dimensions - Weight_Size 2500-2600 (EN)

DOWNLOAD

Dimensions - Weight_Size 3000-3100-3200 (EN)

DOWNLOAD

Dimensions - Weight_Size 3700 (EN)

DOWNLOAD

Dimensions - Weight_Size 4500 (EN)

DOWNLOAD

Dimensions - Weight_Size 5500 (EN)

DOWNLOAD

Dimensions - Weight_Size 6800 (EN)

DOWNLOAD

Dimensions - Weight_Size 7500-8000 (EN)

DOWNLOAD

Input Fittings (EN)

DOWNLOAD

Accessories and Options (EN)

DOWNLOAD

Mounting Positions (EN)

DOWNLOAD

Review (EN)

DOWNLOAD

Complete Catalogue (EN)

DOWNLOAD

TechButton

Want to be sure not to make mistakes choosing the GEARBOX you need? TECH BUTTON is easy to use with its smart interface and it allows you to make the proper selection of gearboxes, geared motors and electric units, according to the catalogues, as well as download 2D and 3D drawings, commercial documents and technical datasheets.

Catalogue CAD 3D: CADENAS

Catalogue CAD 3D: CADENAS

Our product catalogue and configurator are also available on CADENAS, the tool that allows you to configure and download free design data of your gearboxes in over 150 native and neutral CAD formats.

To access this service, go to:

stm.partcommunity.com/3d-cad-models/
